# PulsimGui **Professional GUI for power electronics simulation with Pulsim.** [![Release](https://img.shields.io/github/v/release/lgili/PulsimGUI?label=latest&color=brightgreen)](https://github.com/lgili/PulsimGUI/releases/latest) [![PyPI](https://img.shields.io/pypi/v/pulsimgui?label=PyPI&color=orange)](https://pypi.org/project/pulsimgui/) [![Docs](https://img.shields.io/badge/docs-GitHub%20Pages-0ea5e9)](https://lgili.github.io/PulsimGUI/) [![License: MIT](https://img.shields.io/badge/license-MIT-blue)](LICENSE) [![Python 3.10+](https://img.shields.io/badge/python-3.10%2B-blue)](https://www.python.org/) [**Download latest release**](https://github.com/lgili/PulsimGUI/releases/latest) · [**Install from PyPI**](https://pypi.org/project/pulsimgui/) · [**Documentation**](https://lgili.github.io/PulsimGUI/) · [**Report a bug**](https://github.com/lgili/PulsimGUI/issues)

PulsimGui is a cross-platform desktop interface for Pulsim, focused on modeling and validating power converter topologies.

Key Features

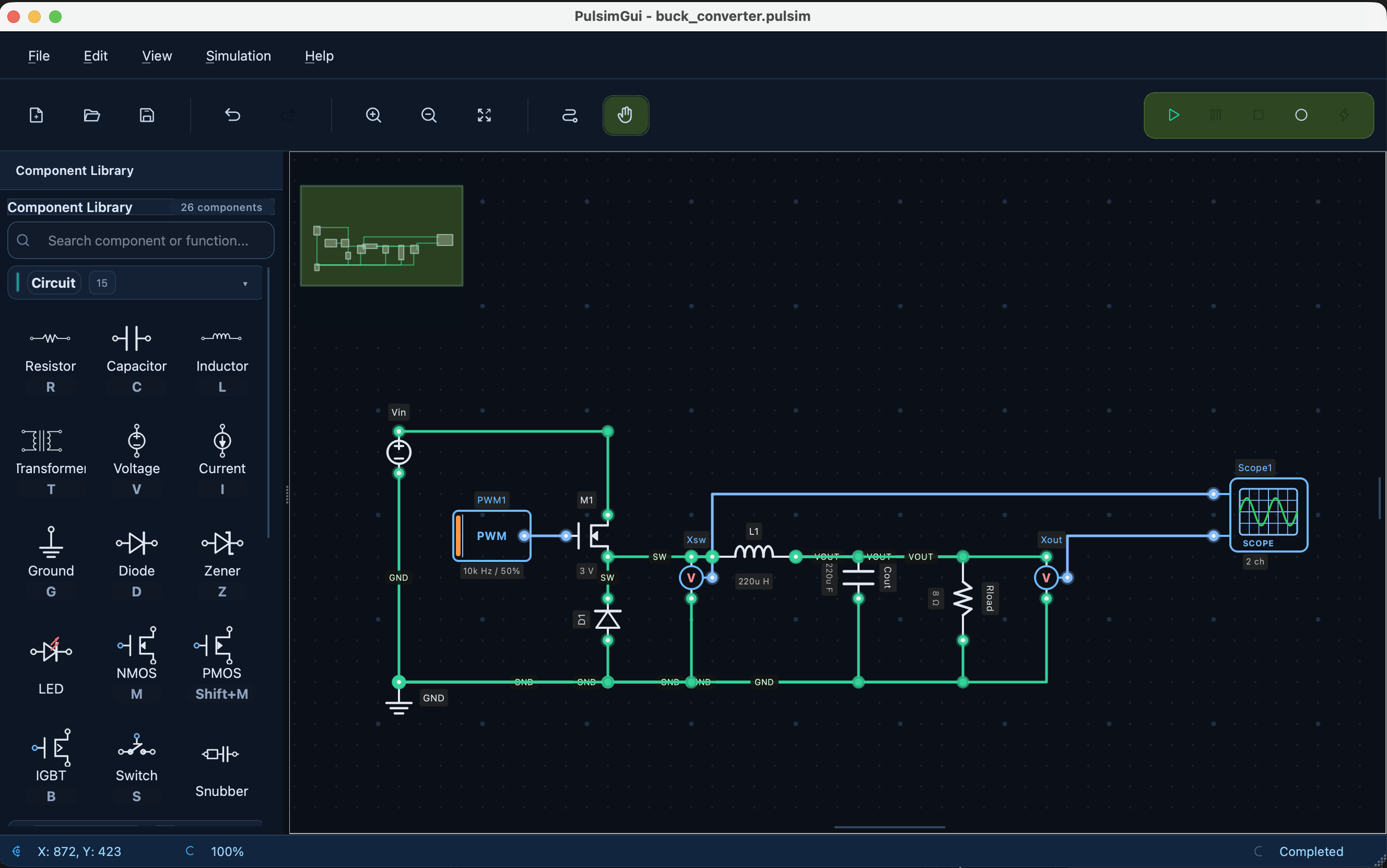

Schematic editor with drag-and-drop workflow.
Component library focused on power electronics.
Transient simulation with advanced solver controls.
Advanced backend telemetry for convergence, fallback, and loss/thermal diagnostics.
Integrated waveform viewer with signal measurements.
Ready-to-run examples (RC, buck, boost, and more).

PLECS-style Scope

Click any Scope component on the schematic to open a modular scope window that streams data from pulsim’s NativeLiveStream during the run and finalises the same window with the full-resolution result on finish — no separate live / post-sim windows.

Single shell + composable capabilities:

Live streaming (60 Hz polling) — wired Run/Stop button on the toolbar.
Post-sim finalisation — same curves, full-resolution arrays.
Cursors A/B with ΔT, 1/ΔT (frequency), and per-signal ΔY readouts.
Math signals — derived traces via a whitelisted formula (A + B, abs(A), derivative(A), moving_avg(A, 16), …).
FFT view — toggle the canvas to log-X magnitude (dB) of the cached signals.
Trigger — Free Run / Single with edge + level on any source signal.
SMPS macros — one-click Tsw / Fsw / Duty / Ripple on the visible window.
Export — CSV (master time grid + linear interp per signal), PNG, or clipboard.

The shell adapts per scope variant: ElectricalScopeVariant (blue accent, V default unit) and ThermalScopeVariant (orange accent, °C). Adding a new variant is a one-file dataclass.

Official Documentation

Full documentation is available at:

https://lgili.github.io/PulsimGUI/

Main content includes:

Installation and execution
GUI guides and workflow
Simulation and backend configuration
Practical tutorials
Technical reference for contributors

Installation

1. Release (Recommended)

Use installers from Releases.

2. Install via pip

python3 -m pip install --upgrade pip
python3 -m pip install pulsimgui

Run:

pulsimgui

The pulsimgui package is published to PyPI by the release pipeline (.github/workflows/release.yml) whenever a new tag v* is released.

3. Development setup (source code)

git clone https://github.com/lgili/PulsimGUI.git
cd PulsimGui
python3 -m venv .venv
source .venv/bin/activate
python3 -m pip install --upgrade pip
python3 -m pip install -e ".[dev]"
python3 -m pulsimgui

Recommended Backend

For reproducible behavior, use pulsim v0.7.9.

This is required for full advanced electrothermal support in GUI runtime:

staged thermal networks (single_rc, foster, cauer)
shared-sink coupling (shared_sink_id, shared_sink_rth, shared_sink_cth)
datasheet switching-loss surfaces (loss.model=datasheet)

Quick check:

python3 -c "import pulsim; print(pulsim.__version__)"

In the app: Preferences → Simulation → Backend Runtime.

Runtime Telemetry

With modern Pulsim backends, transient runs expose structured diagnostics in SimulationResult.statistics, including solver/backend telemetry and electrothermal summaries:

linear_solver_telemetry
backend_telemetry
fallback_trace
loss_summary
thermal_summary
component_electrothermal

Development

Tests

pytest

Template Smoke Test (Pre-release)

PYTHONPATH=src python3 scripts/smoke_templates.py

Lint

ruff check src tests

Local docs build

python3 -m pip install -r docs/requirements.txt
mkdocs build --strict
mkdocs serve

GitHub Pages (Docs)

Documentation is published through:

.github/workflows/docs-pages.yml

Automatic deploy runs on main and workflow_dispatch.

Repository setting required: Settings → Pages → Source: GitHub Actions.

Contributing

Open issues for bug reports and feature requests.
For PRs, include context, validation steps, and evidence (logs/screenshots).
Update docs whenever a user workflow or feature changes.

License

MIT — see LICENSE.
