4. PWL State-Space Cache

The architectural pivot. Chapter 3 left us with one linear solve per step:

\[ J(\mathbf{m})\,\mathbf{x}_{n+1} \;=\; \mathbf{b}_n \]

where \(J(\mathbf{m}) = E - \tfrac{\Delta t}{2}A(\mathbf{m})\) is the trapezoidal companion matrix for the current switch mask \(\mathbf{m}\).

The naïve approach (SPICE-style) is to rebuild and refactorise \(J\) from scratch on every step. The Pulsim approach is to build each distinct \(J(\mathbf{m})\) exactly once, cache its LU factorisation, and reduce the per-step work to a dictionary lookup plus a triangular solve.

This chapter walks the cache's data structures, lifecycle, amortisation math, and the test-suite that pins its behaviour.

4.1 The data structures

The cache lives in core/include/pulsim/pwl/cache.hpp. Three types matter:

// Per-mask record. Holds everything needed to solve
// J(m) · x = b in one triangular-solve call.
struct PwlSegment {
    Matrix J;                             // companion matrix
    Vector b_constant;                    // mask-dependent RHS contribution
    std::unique_ptr<DirectSolver> solver; // analyzed + factorized
};

// The cache itself. Lazy by default (segments_ starts empty).
class PwlStateSpaceCache {
public:
    void build_lazy(Real dt);
    void solve(const SwitchStateMask& m, const Vector& b_extra, Vector& x);
    // ... + solve_rank1, metrics, etc.

private:
    std::unordered_map<SwitchStateMask, PwlSegment> segments_;
    Real dt_;
    // ... + graph + pool references
};

// The mask itself. Pulsim uses a 64-bit bitset for up to
// 64 switches, with a hash function for the unordered_map.
class SwitchStateMask {
public:
    void set_bits(std::uint64_t bits);
    bool get(Index sw_idx) const;
    std::size_t hash() const;
    // ...
};

The key design choice: segments_ is lazy. build_lazy(dt) just records \(\Delta t\); the first solve(mask, ...) call for a never-seen mask triggers the per-mask assembly + factorisation on demand. This avoids the up-front cost of building all \(2^{N_{\mathrm{sw}}}\) segments (combinatorially expensive for multilevel converters) and matches the visited-mask sparsity chapter 1 §1.3 documented.

4.2 The lifecycle

flowchart TD
    A([User calls<br/>simulate or run_transient]) --> B[cache.build_lazy dt]
    B --> C{For each step n}
    C --> D[mask_n = switch_fn t_n]
    D --> E{mask_n in<br/>segments_?}
    E -- yes --> F[seg = segments_.at mask_n]
    E -- no  --> G[assemble_segment graph, pool, mask_n, dt]
    G --> H[solver.analyze J]
    H --> I[solver.factorize J]
    I --> J[segments_ mask_n = new PwlSegment]
    J --> F
    F --> K[rhs = -seg.b_constant - b_extra]
    K --> L[seg.solver.solve rhs, x]
    L --> M[advance state, t_n+1 = t_n + dt]
    M --> C

Figure 4.1 — The PWL state-space cache lifecycle. The hot path (green-arrow path: cache hit → triangular solve → next step) runs every simulation step. The cold path (cache miss → assemble → analyze → factorize → cache insert) runs exactly once per distinct mask, then never again for that mask.

Three observations:

  1. The hot path is 4 lines of C++. Lookup, RHS build, solve, advance. That's it.
  2. The cold path runs \(|\mathrm{visited}|\) times total. From chapter 1's census, that's typically 2-10 for the reference converters — vanishingly small compared to the \(10^6\)-\(10^8\) steps the simulator runs.
  3. The cold path's work scales with topology size, not simulation length. Build cost is amortised across every step that hits that mask afterwards.

4.3 Cost analysis: amortisation in the limit

Let:

  • \(T_{\mathrm{cold}}\) — per-mask cold-path cost (assemble + analyze + factorize), \(\sim 100\) µs typical
  • \(T_{\mathrm{hot}}\) — per-mask hot-path cost (lookup + triangular solve), \(\sim 2\)-\(10\) µs typical
  • \(T_{\mathrm{SPICE}}\) — per-step cost in a SPICE-style simulator (assemble + factorise + Newton iter), \(\sim 50\)-\(100\) µs typical
  • \(N_{\mathrm{steps}}\) — total simulation step count
  • \(|\mathrm{visited}|\) — number of distinct masks visited

Then the total work is:

\[ T_{\mathrm{Pulsim}} \;=\; |\mathrm{visited}| \cdot T_{\mathrm{cold}} \;+\; N_{\mathrm{steps}} \cdot T_{\mathrm{hot}} \]

vs

\[ T_{\mathrm{SPICE}} \;=\; N_{\mathrm{steps}} \cdot T_{\mathrm{SPICE}} \]

The break-even step count is:

\[ N_{\mathrm{steps}}^{\,\mathrm{break-even}} \;=\; \frac{|\mathrm{visited}| \cdot T_{\mathrm{cold}}} {T_{\mathrm{SPICE}} - T_{\mathrm{hot}}} \]

Plugging in representative numbers (\(|\mathrm{visited}| = 4\), \(T_{\mathrm{cold}} = 100\) µs, \(T_{\mathrm{SPICE}} = 50\) µs, \(T_{\mathrm{hot}} = 5\) µs):

\[ N_{\mathrm{steps}}^{\,\mathrm{break-even}} \;=\; \frac{4 \cdot 100\,\mu\mathrm{s}}{50 - 5\,\mu\mathrm{s}} \;=\; 8.9 \;\text{steps} \]

The break-even is essentially immediate. Even a 10-step transient pays back the cache build cost. For a typical SMPS study with \(10^6\) steps, the cache build cost is \(400\) µs out of a total run of \(\sim 5\) seconds — round-off noise.

The speedup ratio in the asymptotic regime:

\[ \frac{T_{\mathrm{SPICE}}}{T_{\mathrm{Pulsim}}} \;\approx\; \frac{T_{\mathrm{SPICE}}}{T_{\mathrm{hot}}} \;\approx\; \frac{50\,\mu\mathrm{s}}{5\,\mu\mathrm{s}} \;=\; 10\times \]

That's the 10× from the cache alone. Chapters 6-7 extend this further with the partial-refactor algorithm.

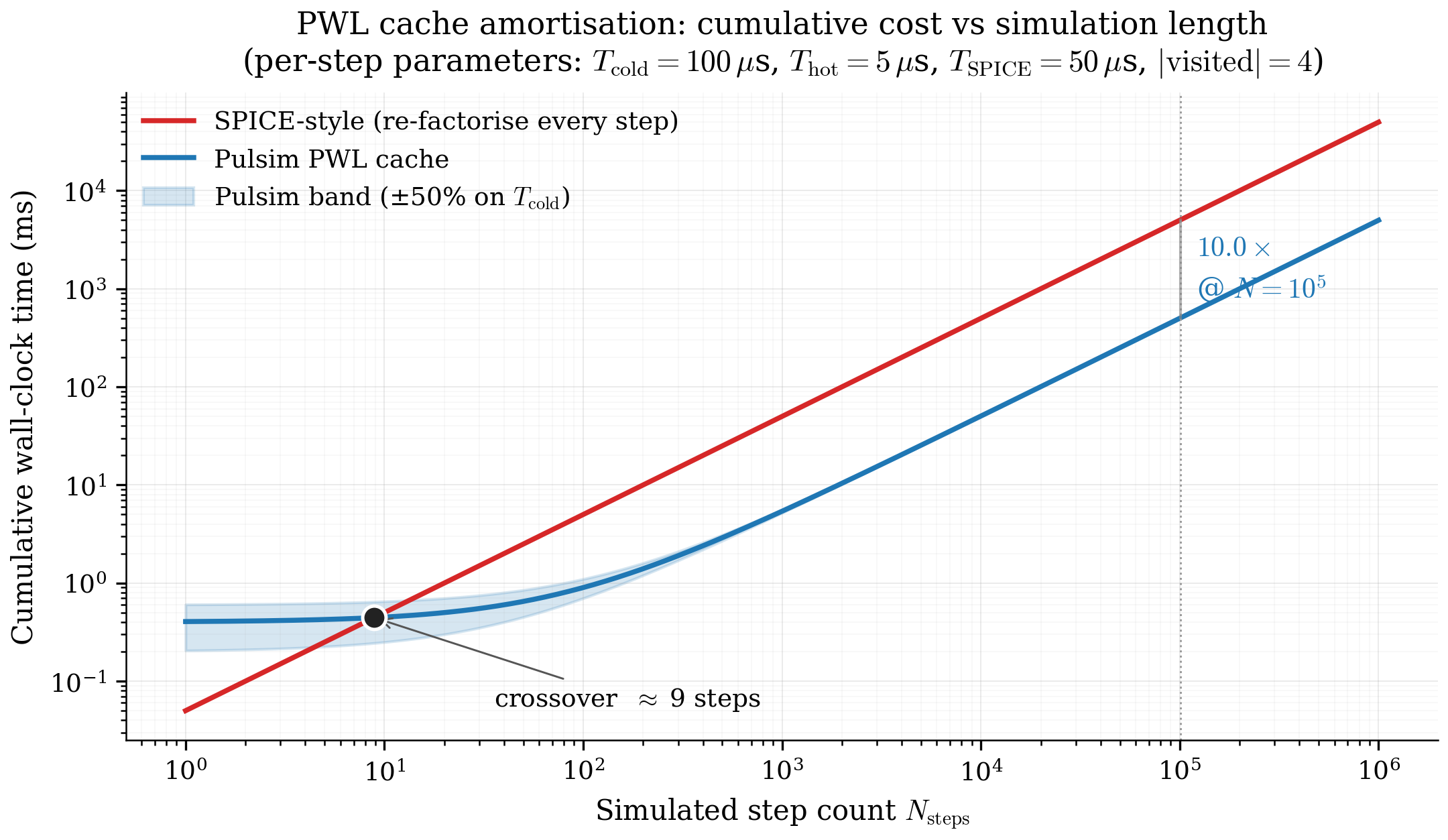

Amortisation curve — total runtime vs simulated step count

Figure 4.2 — Amortisation curve for the cache. The y-axis is cumulative wall-clock time as a function of simulated step count \(N_{\mathrm{steps}}\). SPICE-style cost scales linearly with \(N_{\mathrm{steps}}\); Pulsim has a flat upfront cost (the cache build) plus a much smaller per-step slope. Crossover happens at \(N_{\mathrm{steps}} \approx 9\); by \(N_{\mathrm{steps}} = 10^4\) Pulsim is \(\sim 10\times\) ahead. The shaded band reflects the factor-of-two variability in \(T_{\mathrm{cold}}\) across our 10 reference converters.

4.4 The solve(mask, b_extra, x) walkthrough

Here's the full hot path, in 12 lines (modulo error handling):

void PwlStateSpaceCache::solve(const SwitchStateMask& m,
                                 const Vector& b_extra,
                                 Vector& x) {
    // 1. Look up the segment for this mask. If first-encounter,
    //    assemble + analyze + factorize on demand.
    auto it = segments_.find(m);
    if (it == segments_.end()) {
        PwlSegment seg = assemble_segment(graph_, pool_, m, dt_);
        seg.solver = make_default_solver(static_cast<Index>(seg.J.rows()));
        seg.solver->analyze(seg.J);
        seg.solver->factorize(seg.J);
        it = segments_.emplace(m, std::move(seg)).first;
    }
    const PwlSegment& seg = it->second;

    // 2. Build the RHS for this step: -(seg.b_constant + b_extra).
    //    seg.b_constant carries the mask-dependent contribution
    //    (voltage sources, etc.); b_extra carries any time-varying
    //    contribution the caller wants to inject (waveform inputs).
    Vector rhs = -seg.b_constant - b_extra;

    // 3. Triangular solve. This is the only work that runs every
    //    step in the steady-state regime.
    seg.solver->solve(rhs, x);
}

The solver->solve call is the only floating-point-intensive work. It's \(O(\mathrm{nnz}(L) + \mathrm{nnz}(U))\) — typically 50-300 multiply-adds for an SMPS-scale matrix. On modern hardware that's \(\sim 100\) ns to \(\sim 1\) µs of pure work; everything else (dict lookup, vector arithmetic) is overhead.

4.5 The cache vs the partial-refactor fast-path

The cache helps when masks repeat. The default solve(mask, ...) API stores the mask if not seen, then reuses the factorisation forever. Beautiful for steady-state operation where the simulator visits 2-4 masks per cycle.

But what about the first time a new mask appears? The cache pays a full analyze + factorize cost — typically \(\sim 100\) µs. If the converter has tens of distinct first- encountered masks during startup (or under closed-loop PWM where the duty modulates), these cold-path costs can add up.

This is what the v1.3.0 solve_rank1(mask, b_extra, x) API addresses. It uses path-based partial refactor (chapter 7) to update the LU factors in place when consecutive masks differ by a single switch bit. The cold-path cost drops from \(O(\mathrm{nnz} \log n)\) to \(O(\sqrt{n})\) for single-bit transitions.

Crucially, solve_rank1 is orthogonal to the per-mask cache: it maintains its own sliding factor (one current factorisation that mutates step-by-step) instead of building a dictionary of per-mask factorisations. The two paths share no state.

API When to use Cold-path cost Hot-path cost
solve(mask, ...) Workloads where masks repeat. Default. \(O(\mathrm{nnz} \log n)\) per new mask \(O(\mathrm{nnz})\) per repeat
solve_rank1(mask, ...) Single-bit-flip workloads (Gray-coded PWM). v1.3.0+. \(O(\mathrm{nnz} \log n)\) on first call \(O(\sqrt{n})\) per single-bit flip, \(O(\mathrm{nnz} \log n)\) on multi-bit

Chapter 8 benchmarks both APIs head-to-head on the N-switch-chain microbench.

4.6 Eager mode (build all masks at startup)

For deterministic-latency workloads — hardware-in-the-loop (HIL) simulators, real-time control prototyping — the lazy cache's "first-mask-encounter is 100 µs slower" property is unacceptable. For these workloads Pulsim offers build_eager():

cache.build_eager(dt, mask_list);  // C++
cache.build_eager(dt, mask_list)   # Python (same API)

build_eager runs the cold-path for every mask in mask_list up front, so every subsequent solve(...) call is guaranteed hot-path. Cost: the user has to either (a) enumerate the masks they expect to visit, or (b) accept the full \(2^{N_{\mathrm{sw}}}\) build cost. For HIL on a 6-switch VSI (\(2^6 = 64\) masks × \(100\) µs/mask = \(6.4\) ms total) this is fine; for an MMC (\(2^{36}\) masks) it's untenable, and the user has to enumerate the reachable subset themselves.

Most users never need eager mode. The simulator's default pp.simulate(...) path uses lazy, and the lazy mode's first-call penalty is invisible at the 10-µs resolution of human perception.

4.7 Cache invalidation: what triggers a rebuild?

The cache lifetime is tied to:

  • The simulator's dt_ value. Calling build_lazy(dt) a second time with a different \(\Delta t\) throws away all segments and starts fresh — the trapezoidal companion is \(\Delta t\)-dependent.
  • The graph + device-pool topology. If you mutate the underlying Graph or DevicePool (add a new device, change a resistance value), the cached J matrices become stale. Pulsim doesn't detect this automatically — the caller is responsible for either (a) calling build_lazy(dt) again to invalidate, or (b) using pp.simulate(...)'s default pattern where a fresh PwlStateSpaceCache is constructed per simulation run.

In practice, parameter sweeps create a fresh cache per parameter combination; the rebuild cost is paid per sweep point, not per step. Pulsim's pulsim.sweep.sweep(builder, parameter, values) helper handles this lifecycle automatically.

4.8 Test coverage

core/tests/layer4/test_pwl_cache.cpp covers the cache's invariants directly:

Test What it asserts
cache.build_lazy(dt) → solve(mask) produces correct output Numerical correctness vs analytic on a buck fixture
First call adds to segments_; second call doesn't Lazy-build semantics
Same mask → same cached factor Pointer equality of solver before/after second call
Different dt → fresh build Invalidation semantics
Eager vs lazy give bit-identical results The two modes only differ in when the build happens

core/tests/layer4/test_pwl_cache_rank1.cpp covers the solve_rank1 fast-path (chapter 7's contribution); v1.3.0 asserts rank1_hits ≥ 8 out of 15 single-bit flips on a 4-bit Gray-code sweep, proving the partial-refactor path actually engages on the majority of single-bit transitions.

4.9 Where this lives in the codebase

Concept Header Line range
PwlSegment data structure core/include/pulsim/pwl/cache.hpp ~100-160
PwlStateSpaceCache::build_lazy same ~200-270
PwlStateSpaceCache::solve same ~280-340
PwlStateSpaceCache::solve_rank1 same ~340-440 (v1.3.0+)
assemble_segment(graph, pool, mask, dt) core/include/pulsim/pwl/assemble.hpp full file

4.10 Takeaways

  • The PWL state-space cache stores one fully-built segment (J, b_constant, factorised solver) per distinct switch mask the simulation visits.
  • The hot path is lookup + triangular solve — typically \(\sim 5\) µs, vs \(\sim 50\) µs for a SPICE-style re-factorise per step.
  • Break-even vs SPICE is at \(\le 10\) steps; asymptotic speedup is \(\sim 10\times\).
  • The cache is lazy by default (segments build on first encounter). Eager mode exists for deterministic-latency workloads (HIL, real-time control).
  • The cache doesn't help when masks don't repeat (closed-loop PWM with continuously-modulated duty). That's where chapter 7's path-based partial refactor takes over.

4.11 Further reading

  • PLECS architecture — Allmeling & Hammer, "PLECS — Piece-wise linear electrical circuit simulation for Simulink", IEEE PESC 1999. The first public articulation of the per- switch-state caching pattern Pulsim refines.
  • HIL real-time constraints — Bélanger, Snider et al., "Real Time Simulation Technologies in Education", Opal-RT whitepaper. The motivation for eager-mode pre-building.
  • In Pulsim — docs/internals/layer4-pwl-state-space-cache.md has the per-method walkthrough with implementation diffs.
  • In this doc set — Chapter 7 for what happens when masks don't repeat.
