9. Architecture Walkthrough

The previous eight chapters covered the algorithms. This chapter covers the codebase: the 10-layer architecture that organises ~30,000 lines of C++23 + Python so that each algorithm fits cleanly into its own slot. By the end you'll know where to start reading, what each layer is responsible for, and where to add a new device, a new ODE discretisation, or a new sparse-LU optimisation.

9.1 The layer model

Pulsim's kernel is organised as 10 strictly acyclic layers. Each layer depends on all layers below; no layer depends on any layer above. This is the same discipline that makes the Linux kernel + LLVM scaleable: a clean dependency DAG lets each layer be tested in isolation without spinning up the layers above.

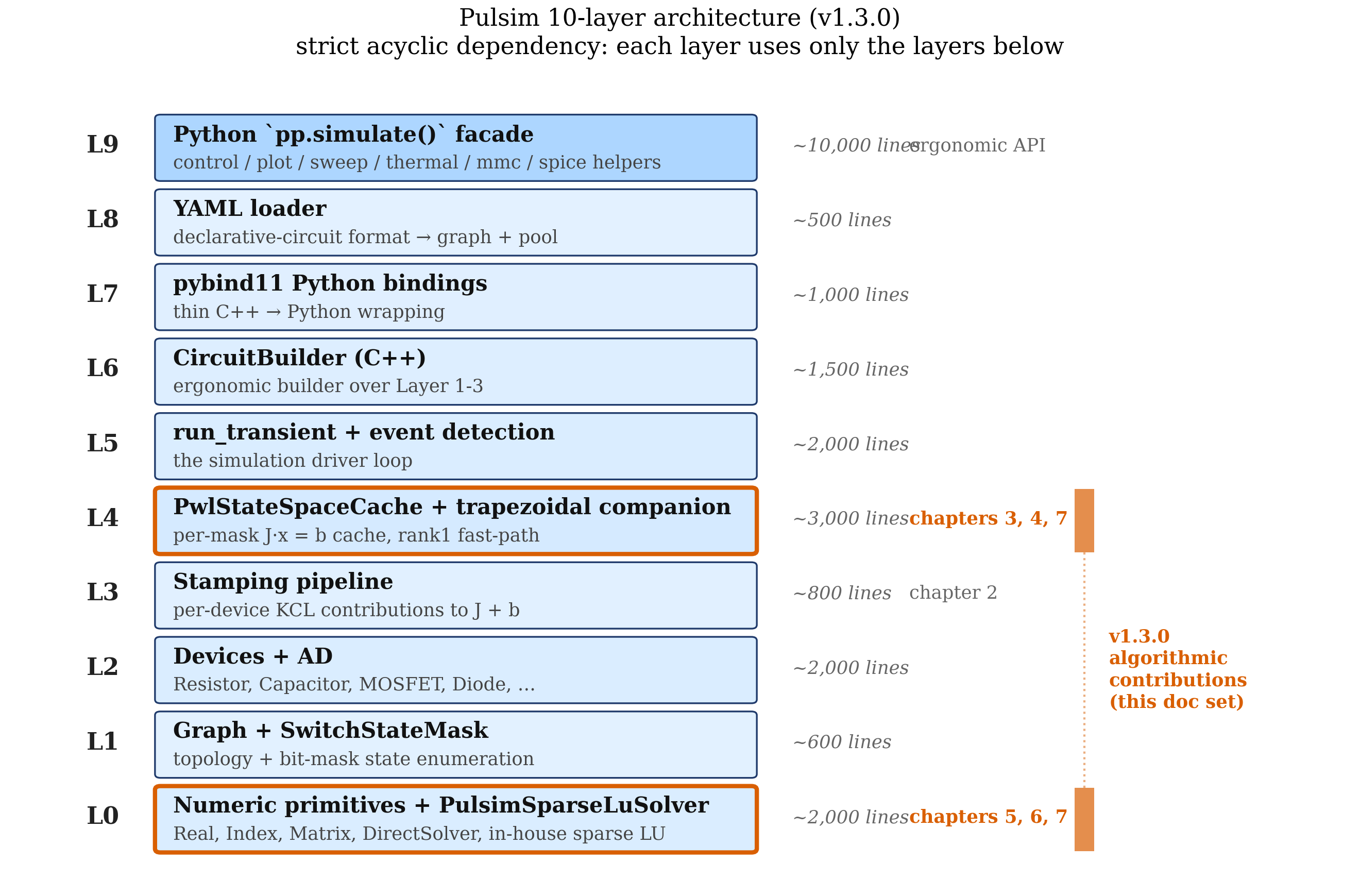

Pulsim 10-layer stack diagram

Figure 9.1 — The 10 layers of the Pulsim kernel, from the numeric primitives at the bottom to the Python pp.simulate(...) ergonomic facade at the top. Each box is shaded by its line- count contribution (relative size); arrows show the algorithm each layer hosts (from chapters 2-7). The "v1.3.0 algorithmic contributions" highlighted on the right are the topics of this doc set.

The dependency rule is enforced by per-layer CMake targets and separate test binaries (pulsim_core_layer{0..9}_tests). If Layer 4's tests link successfully without Layer 5+, the layer separation is provably enforced; conversely, if a Layer 2 test fails to compile after editing Layer 3, that's a direction-of-dependency leak that fails CI.

9.2 Layer-by-layer summary

Layer 0 — Numeric primitives

Responsibilities: Real (double), Index (int64), Vector (Eigen dense), Matrix (Eigen sparse, CSC). The DirectSolver abstract interface (analyze / factorize / solve / partial_refactor). The SparseLuSolver (Eigen reference, Backend::Eigen) and PulsimSparseLuSolver (in-house, default since v1.3.0). Number-type aliases used by every other layer.

Hosts: Chapters 5-7's algorithms. ~1,500 lines.

Headers: core/include/pulsim/numeric/, core/include/pulsim/sparse/.

Tests: core/tests/layer0/ — 227 assertions across 41 test cases at v1.3.0 (the in-house sparse LU coverage).

Layer 1 — Topology + switch enumeration

Responsibilities: Graph (nodes + branches), BranchKind enum (Passive, Source, Switch, ...), SwitchStateMask (64-bit bitset of switch positions). The graph operations that turn an abstract circuit into something the assemblers can stamp.

Headers: core/include/pulsim/topology/.

Tests: core/tests/layer1/.

Layer 2 — Device models + automatic differentiation

Responsibilities: the device library — Resistor, Capacitor, Inductor, VoltageSource, IdealDiode, MosfetLevel1, IgbtLevel1, Transformer, etc. Each device exposes evaluate_current_and_jacobian(state) returning \(i\) and \(\partial i / \partial v\) via forward-mode automatic differentiation.

Headers: core/include/pulsim/pwl/devices/, core/include/pulsim/ad/.

Tests: core/tests/layer2/, core/tests/layer2_v1/ (MOSFET/IGBT specialised), core/tests/layer2_v2/ (transformer).

Layer 3 — Stamping pipeline

Responsibilities: stamp_device<DeviceKind>(graph, pool, mask, J, b) — for each device kind, contribute its KCL stamps + RHS contribution to the global \(J\) and \(\mathbf{b}\). Chapter 2 §2.4 walked the buck example; the stamp functions are what assemble those entries.

Headers: core/include/pulsim/pwl/assemble.hpp, core/include/pulsim/pwl/dc_assemble.hpp.

Tests: core/tests/layer3/.

Layer 4 — PWL state-space cache + trapezoidal companion

Responsibilities: the architectural pivot. PwlStateSpaceCache (chapter 4), trapezoidal companion discretisation (chapter 3), DC operating-point solver, Newton-refinement on nonlinear devices, the solve_rank1(...) v1.3.0 fast-path (chapter 7's algorithm plugged in here, extended by v1.4.0 to handle multi-bit transitions via path-union; chapter 8 §8.11.1), and the refactor_parametric(...) v1.4.0 API for sweep / Monte Carlo workloads (chapter 8 §8.11.2).

Headers: core/include/pulsim/pwl/cache.hpp, core/include/pulsim/pwl/dc_op.hpp, core/include/pulsim/pwl/device_pool.hpp (v1.4.0 added columns_affected_by_branch / update_* / kind_of for the parametric refactor pipeline).

Tests: - core/tests/layer4/test_pwl_cache_rank1.cpp — single-bit Gray-code rank-1 fast path + v1.4.0 multi-bit routing - core/tests/layer4/test_pwl_cache_parametric.cpp — v1.4.0 parametric refactor (6 cases / 57 assertions covering single-param sweep parity, two-param simultaneous, Mode::CurrentOnly, telemetry invariant) - core/tests/layer4_v1/ through layer4_v10/ — historical feature additions, each one a deliverable from a prior OpenSpec proposal (DC OP, Newton globalization, LM-Newton, lazy cache, multi-dt cache, warm-start, etc.)

Layer 5 — Solver + event detection + run_transient

Responsibilities: the main simulation driver. run_transient(cache, graph, pool, opts, switch_fn, b_extra_fn, step_observer) — the loop that calls cache.solve(mask, b_extra, x) per step, detects switching events (zero-crossings, threshold crossings), and triggers SimulationResult accumulation.

Headers: core/include/pulsim/runtime/run_transient.hpp.

Tests: - core/tests/layer5/ — driver semantics - core/tests/layer5_v1/ — buck validation (14,604 assertions spanning all 10 reference projects) - core/tests/layer5_v2/-v4/ — event detection + ideal diode + Newton-in-run-transient

Layer 6 — CircuitBuilder (C++ user API)

Responsibilities: the user-facing API for constructing circuits programmatically. builder.add_resistor("R1", "n0", "n1", 100.0), builder.add_voltage_source(...), etc. Wraps the lower layers in an ergonomic interface.

Headers: core/include/pulsim/builder/.

Tests: core/tests/layer6/.

Layer 7 — Python bindings (pybind11)

Responsibilities: Python pulsim._pulsim module — the pybind11 wrapping of every public C++ class. pulsim.CircuitBuilder, pulsim.PwlStateSpaceCache, pulsim.run_transient, pulsim.SwitchStateMask, etc. Includes the IdealDiodeParams Python wrappers for device parameter structs.

Source: python/src/ — under 1,000 lines of pybind11 glue. Pulsim's bindings deliberately stay thin; richer Python API lives in Layer 9.

Tests: python/tests/ — pytest, runs in the CI matrix on Python 3.10/3.11/3.12/3.13 × ubuntu/macos/windows.

Layer 8 — YAML loader

Responsibilities: pp.load_yaml_file(path) — load a circuit from a declarative YAML schema. The YAML parses to a LoadedCircuit containing the graph + pool, ready for PwlStateSpaceCache to consume.

Headers: core/include/pulsim/yaml/loader.hpp.

Tests: core/tests/layer8/.

Layer 9 — Python simulate() ergonomic facade

Responsibilities: pulsim.simulate(builder, t_end, dt, ...) — the one-call API documented in the python/pulsim/__init__.py docstring. Auto-detects nonlinear devices, sets sensible defaults for enable_nonlinear_refresh / switch_fn / progress reporting, and wraps the lower-layer run_transient call.

Also under this layer: every Python helper module — pulsim.control, pulsim.plot, pulsim.scope, pulsim.sweep, pulsim.thermal, pulsim.mmc, etc. ~10,000+ lines of pure-Python value-add on top of the C++ kernel.

Source: python/pulsim/.

Tests: python/tests/ — same matrix as Layer 7.

9.3 Cross-layer dependency graph

graph TD
    L9[Layer 9 — pp.simulate facade<br/>+ control/plot/sweep/thermal helpers]
    L8[Layer 8 — YAML loader]
    L7[Layer 7 — pybind11 Python bindings]
    L6[Layer 6 — CircuitBuilder C++ API]
    L5[Layer 5 — run_transient + event detection]
    L4[Layer 4 — PwlStateSpaceCache<br/>+ trapezoidal companion<br/>+ rank1 fast-path]
    L3[Layer 3 — stamp_device pipeline]
    L2[Layer 2 — devices + AD]
    L1[Layer 1 — Graph + SwitchStateMask]
    L0[Layer 0 — numeric primitives<br/>+ PulsimSparseLuSolver]

    L9 --> L7
    L9 --> L6
    L8 --> L6
    L7 --> L6
    L6 --> L5
    L5 --> L4
    L4 --> L3
    L4 --> L0
    L3 --> L2
    L3 --> L1
    L2 --> L1
    L2 --> L0
    L1 --> L0

Figure 9.2 — The strict acyclic dependency graph. Arrows point from "depends on" to "depended on". Layer 0 (numeric primitives + sparse LU) is the foundation everyone uses; Layer 9 (Python facade) is reached only via Layer 7 (bindings) + Layer 6 (builder). The Python interpreter never sees the inner layers directly — every Python call enters through CircuitBuilder, SwitchStateMask, or PwlStateSpaceCache, all of which live at Layer 6 or below.

The graph is strictly acyclic — no back-edges. This is checked by the CMake target structure (each layer's target_link_libraries only references the layers below it) and would fail at link time if a back-edge were introduced.

9.4 The "where do I add X?" cheat sheet

A new contributor's most common question:

What you want to add Layer(s) Example pattern
New device kind (e.g. JFET, GaN HEMT) 2 + 3 New pulsim/pwl/devices/jfet.hpp evaluator + stamp_jfet(...) in assemble.hpp. Add to DeviceVariant in Layer 2; add a switch case in assemble_segment
New ODE discretisation (e.g. BDF2, Gear's method) 4 Add assemble_segment_bdf2(...) parallel to the trapezoidal companion. The PWL cache becomes parametric on the discretisation.
New event-detection algorithm (e.g. polynomial fit) 5 New detect_event_polynomial(...) in run_transient's event-detection module
New sparse-LU algorithm (e.g. BTF, COLAMD ordering) 0 Add to PulsimSparseLuSolver (extend compute_*_ordering_ / add a BTF prepass)
New backend (e.g. CUDA cuSPARSE) 0 Implement DirectSolver interface in a new class; add to Backend enum + factory
New top-level Python helper 9 Add a new pulsim/foo.py; re-export from pulsim/__init__.py
New circuit topology (reference project) n/a Add to projects/foo/ with a foo_model.py + foo_pulsim_validation.py + 3 generated notebooks

The recurring pattern: changes that need new C++ types go into a new sub-namespace under core/include/pulsim/; changes that are pure orchestration go into the Python layer. Pulsim's philosophy is "C++ for the math, Python for the ergonomics".

9.5 Test-suite mapping

Each layer has its own test binary. The full v1.3.0 inventory:

Layer Binary Assertions Notes
0 pulsim_core_layer0_tests 227 v1.3.0 added 60+ for the in-house sparse LU
1 pulsim_core_layer1_tests TBD
2 pulsim_core_layer2_tests + _v1 + _v2 TBD MOSFET/IGBT + transformer
3 pulsim_core_layer3_tests TBD stamping
4 pulsim_core_layer4_tests + _v1 … _v10 172 + … PWL cache + 10 successor versions
5 pulsim_core_layer5_tests + _v1 … _v4 2,069 + 14,604 + 101 + … the bulk of behaviour coverage
6 pulsim_core_builder_tests TBD
7 (Python) varies runs in CI matrix
8 pulsim_core_yaml_tests TBD
9 python/tests/test_*.py 200+ high-level integration

Total at v1.3.0: 17,275 assertions across the C++ kernel plus 200+ Python integration tests. Zero regression vs the pre-v1.3.0 baseline when the v1.3.0 PR merged.

The test-coverage rule is enforced by code review:

Any new feature lands with its layer's test binary updated in the same PR; PRs that touch C++ without touching tests don't merge.

This is what's allowed the layer separation to stay clean across 100+ feature additions — every layer has a "this still works" assertion bank that the next feature must not regress.

9.6 The build system

CMakeLists.txt at the root composes everything:

# Root CMakeLists.txt (paraphrased)
find_package(Eigen3 3.4 REQUIRED)

FetchContent_Declare(yaml-cpp ...)
FetchContent_MakeAvailable(yaml-cpp)

# Header-only interface library — Layer 0..6 + 8 all live here
add_library(pulsim_core INTERFACE)
target_link_libraries(pulsim_core INTERFACE
    Eigen3::Eigen
    yaml-cpp::yaml-cpp)
target_compile_features(pulsim_core INTERFACE cxx_std_23)
add_library(pulsim::core ALIAS pulsim_core)

# Per-layer test binaries
add_subdirectory(core/tests/layer0)
add_subdirectory(core/tests/layer1)
# ... etc

# Python bindings (Layer 7)
add_subdirectory(python)

Two consequences:

  1. pulsim_core is header-only. No .so to link against; downstream consumers just find_package(pulsim) and include the headers. This makes Pulsim trivial to vendor into other projects.
  2. Test binaries are independent. Each layer's test binary compiles + runs separately. You can cmake --build build --target pulsim_core_layer0_tests to get just the sparse-LU tests without compiling the full simulator.

The full build (kernel + Python bindings + all tests) takes ~5 minutes on macOS / Apple Silicon with Ninja + AppleClang 17. Incremental rebuilds after editing a single header are ~10 seconds.

9.7 The release cadence

Pulsim releases follow semantic versioning:

  • Major (1.x → 2.x): breaking public API change to the Python facade (Layer 9). Hasn't happened post-1.0.
  • Minor (1.2 → 1.3): new feature, possibly with breaking changes to the C++ kernel-builder API (Layer 6) or removed deprecated APIs.
  • v1.3.0 — In-house real sparse LU (replace-klu-with-pulsim-sparse-lu).
  • v1.4.0 — Complex sparse LU specialisation; AC sweep migrated off Eigen::SparseLU<complex> (add-pulsim-complex-sparse-lu).
  • v1.4.0 — Generalised path-based update framework: multi-bit transitions via path-union AND parametric refactor for sweeps
    • Monte Carlo (add-generalised-path-refactor). Python helpers sweep_path_aware / monte_carlo_path_aware land as drop-in replacements for sweep / monte_carlo.
  • Patch (1.4.0 → 1.5.1): bug fix, no API change.

Each minor release has:

  • An OpenSpec proposal under openspec/changes/<name>/ (eventually archived to openspec/changes/archive/)
  • A CHANGELOG.md entry under the new version heading
  • Version bumps in pyproject.toml, python/pulsim/__init__.py, CITATION.cff
  • A GitHub PR that gets reviewed + merged + tagged

The strictness pays off: anyone reading the changelog + proposal archive can reconstruct the why-and-what of every kernel change in Pulsim's history without spelunking through git log.

9.8 Where to start if you're new

For someone landing on the repo for the first time:

  1. Read the Mental Model — 5 minutes, the elevator pitch
  2. Run the Getting Started tutorial — 30 minutes, a working buck simulation
  3. Skim chapters 1-3 of this doc set — 1 hour, the conceptual foundations (MNA + trapezoidal + topology exploitation)
  4. Read chapter 4 — 30 minutes, the PWL cache (the most important architectural idea in Pulsim)
  5. Pick a layer and read its core/tests/layer*/ test file — the tests are the most concrete documentation of what each layer guarantees
  6. For C++ contributors: pick an OpenSpec proposal from openspec/changes/archive/ and read it cover-to-cover. The proposal + tasks + design + deltas + the merged commits give a complete walkthrough of a feature landing in the kernel.

For Python users:

  • The 10 reference projects under projects/{buck, boost, npc-3phase, mmc, ...} are full working examples
  • The python/pulsim/__init__.py docstring shows the high-level simulate() API
  • The docs/tutorials/ covers six common SMPS topologies step-by-step

9.9 Takeaways

  • Pulsim is organised into 10 strictly acyclic layers, from Layer 0 (numeric primitives + sparse LU) up to Layer 9 (Python facade + helpers).
  • Each layer has its own test binary with 200-15,000 assertions, enforcing isolation and preventing regression.
  • Layer separation is enforced at link time via CMake target structure — no back-edges possible.
  • The kernel is header-only at the C++ layer (Layer 0-6 + 8): no .so to link against, trivial to vendor into other projects.
  • The chapters 4-7 algorithms (PWL cache + sparse LU + path-based partial refactor) live in Layers 0 and 4; every other layer is plumbing that connects user input to these algorithms.

9.10 Further reading

  • Layer-by-Layer Internals (the README) — the canonical per-file walkthrough. This chapter is the executive summary; that README is the detail.
  • Build System — CMake target composition, dependency declarations, install targets.
  • OpenSpec proposals under openspec/changes/ (active) and openspec/changes/archive/ (historical) — the most complete log of "what changed and why" in the Pulsim kernel.
  • In this doc set — Chapter 10 is the figure index that maps every diagram in this section to the methods paper section that uses it.
