5. Sparse Direct LU Foundations

Chapter 4's PWL cache stores one analyzed-and-factorised sparse LU per switch mask. To understand how Pulsim's in-house solver works (chapter 6) and what its path-based partial refactor achieves (chapter 7), you first need to know what "sparse LU" actually does — and why the three algorithms Pulsim implements (Reverse Cuthill-McKee ordering, elimination trees, Gilbert-Peierls left-looking factorisation) are the right choices for the SMPS matrix shape established in chapter 2.

This chapter is the textbook chapter: math + visual intuition + literature references. Skim it if you're already fluent in Davis 2006; deep-read it if you've only seen dense LU before.

5.1 Why direct, not iterative

The classical choice when solving \(A\mathbf{x} = \mathbf{b}\) at production scale is between direct methods (compute \(L \cdot U\) once, then back-substitute) and iterative methods (start with a guess, repeatedly multiply by \(A\) until convergence — GMRES, BiCGSTAB, CG).

For Pulsim's workload the choice is direct. Three reasons:

Matrices are small

SMPS state sizes range from \(n \approx 5\) (buck) to \(n \approx 50\) (MMC arm), maybe up to \(n \approx 200\) for whole-power- electronic-system simulations. Iterative solvers' asymptotic advantage kicks in at \(n \gtrsim 10^4\); below that, direct beats iterative by 1-2 orders of magnitude per call.

We need exact answers every step

Pulsim does \(10^6\)-\(10^9\) solves per simulation. An iterative solver returns an approximation; the per-step residual would accumulate over millions of steps and corrupt the simulated waveform. Direct solvers return the exact (machine-precision) answer for \(A\mathbf{x} = \mathbf{b}\), modulo standard floating- point round-off.

The factor is reusable

Once we've computed \(A = LU\), every subsequent solve with the same \(A\) but different \(\mathbf{b}\) costs only the triangular solves \(L\mathbf{y} = \mathbf{b}\) + \(U\mathbf{x} = \mathbf{y}\) — typically \(\sim 100\) ns. The PWL cache (chapter 4) and the sliding-solver pattern of chapter 7 both depend on this factor-reuse property; an iterative solver has no factor to reuse.

The trade-off: direct solvers consume more memory than iterative ones (the \(L+U\) fill-in). For SMPS this isn't a constraint — even an MMC's \(n = 200\) matrix is \(\sim 100\) KB stored, which is nothing.

5.2 Why sparse, not dense

A dense \(n \times n\) matrix needs \(O(n^2)\) storage and an \(O(n^3/3)\) LU factorisation. For \(n = 50\) that's \(\sim 40\,000\) multiply-adds — small in absolute terms (\(\sim 5\) µs on modern hardware) but \(\sim 10\times\) more than the equivalent sparse LU.

A sparse \(n \times n\) matrix with \(\mathrm{nnz}\) nonzeros and a good ordering needs \(O(\mathrm{nnz})\) storage and an \(O(\mathrm{nnz} \cdot \log n)\) factorisation — for \(n = 50\) and \(\mathrm{nnz} = 200\), that's \(\sim 1\,000\) multiply-adds.

The catch: getting from \(\mathrm{nnz} = 200\) stored to \(O(\mathrm{nnz})\) factorisation cost requires fill control. A naïve LU on a sparse matrix can introduce far more nonzeros in \(L+U\) than were present in \(A\), blowing the storage and the operation count. The next section explains how.

5.3 What "fill" is, and why it ruins naïve sparse LU

LU decomposition is Gaussian elimination: zero out the sub-diagonal entries of column \(k\) by subtracting a multiple of row \(k\) from rows \(k+1, k+2, \ldots, n-1\).

When we subtract row \(k\) (with nonzero pattern \(S_k\)) from row \(i > k\), the resulting row \(i\) has nonzero pattern \(S_i \cup S_k\) — entries that were zero in \(A\) but are nonzero in \(L\) or \(U\) are called fill.

For the buck-like 8×8 fixture of chapters 2 and 6, three column orderings give wildly different fill counts:

Fill comparison: natural vs RCM vs COLAMD ordering on a representative MNA matrix

Figure 5.1 — Fill comparison on a representative MNA matrix. Left: original \(A\) with \(\mathrm{nnz}(A) = 22\). Middle: factorised \(L+U\) under the natural ordering (just take the columns in order). Right: factorised \(L+U\) under RCM ordering (chapter 6 §6.2's choice). RCM produces \(\sim 30\) nonzeros in \(L+U\) vs natural's \(\sim 60\). The difference comes entirely from fill control; both decompositions are algebraically equivalent up to permutation.

The lesson: the order in which you eliminate columns matters enormously. A clever ordering can reduce fill by 2-10×; a bad ordering can balloon a sparse matrix into a dense one.

5.4 RCM: reverse Cuthill-McKee ordering

Pulsim uses Reverse Cuthill-McKee (RCM) ordering, originally from George 1971. The idea:

  1. Build the symmetric adjacency graph of \(|A| + |A^T|\) (treat \(A\) as if it were symmetric for the purpose of ordering).
  2. Pick a starting vertex (Pulsim picks the minimum-degree unvisited vertex).
  3. BFS from there, ordering vertices in ascending neighbour degree.
  4. Reverse the resulting sequence.

The output is a permutation \(P\) such that \(P \cdot A \cdot P^T\) has a band structure — nonzeros cluster near the diagonal. Band matrices factorise with minimal fill because Gaussian elimination can only introduce fill within the band, never outside it.

For SMPS topologies whose physical structure is already chain- like (MMC arms, multi-cell flying-cap converters, the N-switch-chain benchmark fixture), RCM recovers the natural banded structure essentially perfectly. For more irregular topologies (NPC, three-phase VSI) RCM gives a 1.5-3× fill improvement over natural ordering — not as dramatic as the band cases, but solid.

The alternatives Pulsim could have used:

  • COLAMD (column approximate minimum-degree, Davis & Hu 2004): typically 10-30 % better fill than RCM on irregular matrices, but its symbolic phase is 2-5× slower.
  • AMD (approximate minimum-degree, Amestoy/Davis/Duff 1996): similar trade-off to COLAMD.

The Pulsim v1.3.0 design choice was RCM for the MVP. The proposal explicitly lists COLAMD/AMD as out-of-scope follow-ups; they'll land in a future release once benchmark data shows RCM is the bottleneck.

5.5 The elimination tree

Once \(P \cdot A \cdot P^T\) is permuted to band form, we can ask: when we eliminate column \(k\), which other columns are affected by the fill it produces?

The answer is governed by the elimination tree (etree), a data structure defined as:

\(\mathrm{parent}[k]\) is the smallest column index \(j > k\) such that \(L_{jk} \ne 0\) — i.e. the next column down the \(k\)-th column of \(L\).

(If no such \(j\) exists, \(k\) is a root.)

The etree captures fill propagation in a way that makes the chapter 6's symbolic factorisation linear-time (Davis 2006 §4.10):

  • To predict the fill in column \(k\), you only need to look at the etree subtrees rooted at \(k\)'s direct neighbours in \(A\).
  • To do path-based partial refactor (chapter 7), you walk the etree from a changed column up to the root and update only those columns — every column off the path is unaffected.

Visually, the etree for a representative MNA matrix:

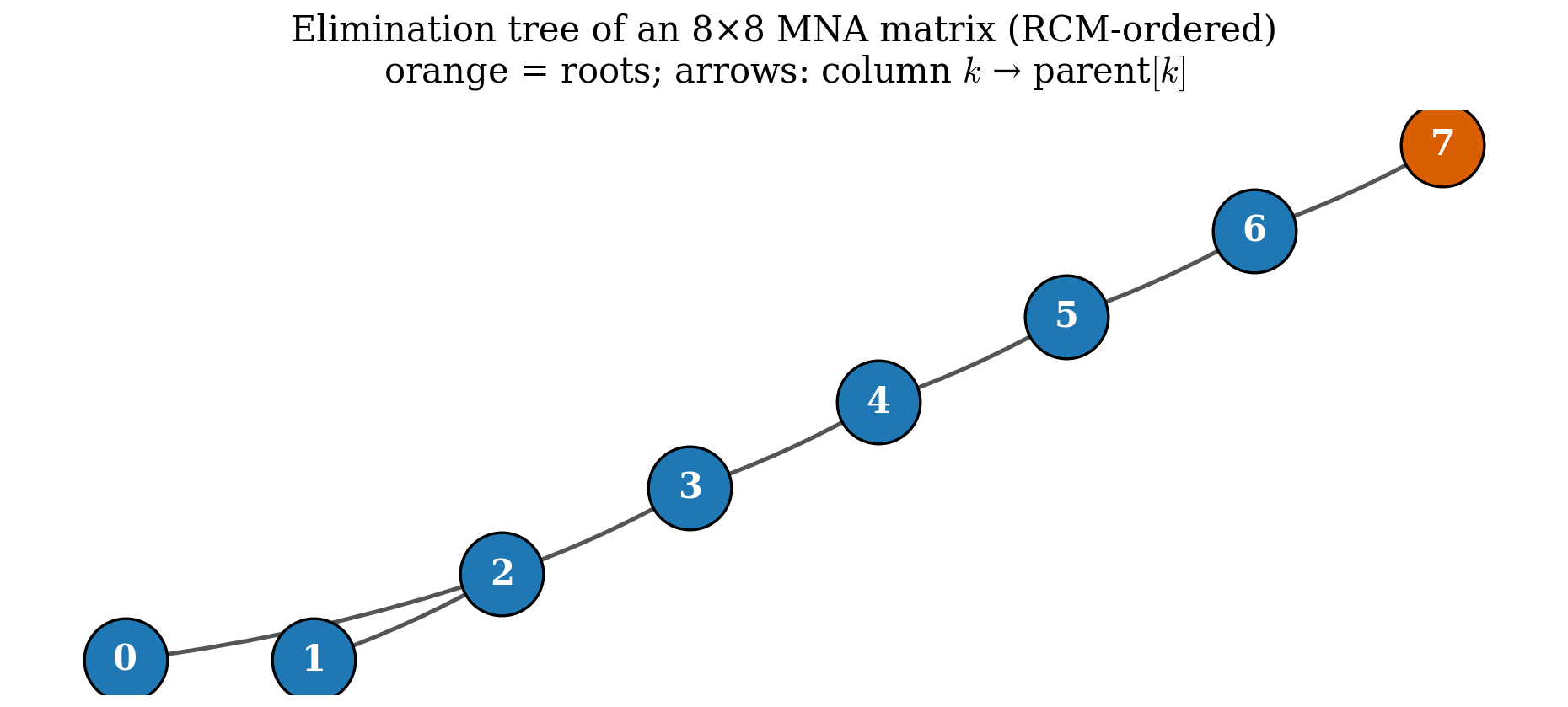

Elimination tree for an 8x8 MNA matrix

Figure 5.2 — Elimination tree (etree) for an 8×8 MNA matrix after RCM ordering. Each box is a column index in the permuted order; arrows point parent → child. Columns 0, 1, 2 are leaves (no \(L_{jk} \ne 0\) for any \(k < j\)); column 7 is the unique root. Eliminating column 2 only affects columns 4, 6, 7 (its path to the root); column 3's subtree is independent.

Pulsim's PulsimSparseLuSolver::etree_parent_ is exactly this data structure: a std::vector<Index> of length \(n\) where etree_parent_[k] == j means \(j\) is the next column down the \(k\)-th column of \(L\), or \(-1\) if \(k\) is a root.

5.6 Gilbert-Peierls left-looking factorisation

There are two algorithmic families for sparse LU:

  • Right-looking ("LU as outer products"): factor column \(k\), then immediately propagate its effect to all columns \(j > k\). Memory bandwidth is the bottleneck (each remaining column gets re-loaded once per left column).
  • Left-looking ("LU as inner products"): for column \(k\), gather all the corrections that prior columns \(j < k\) owe to \(k\), apply them in one pass. Memory bandwidth is much better; this is the choice for sparse direct.

Pulsim implements the Gilbert-Peierls left-looking algorithm (Gilbert & Peierls, SIAM J. Sci. Stat. Comput. 9, 1988). The core inner loop, in pseudo-code:

for k in 0..n-1:
    x = A[:, P_col[k]]            # load the column from A
    for j in 0..k-1:
        if x[j] != 0:               # there's a pending L-update
            x[j+1:n] -= L[j+1:n, j] * x[j]
    pivot = argmax(|x[k:n]|)        # partial pivoting
    swap rows k and pivot in L and P_row
    L[k+1:n, k] = x[k+1:n] / x[k]
    U[0:k+1, k] = x[0:k+1]

Three things make this fast in the sparse case:

  1. The inner for j loop only visits columns \(j\) where \(x[j] \ne 0\). For a banded matrix with bandwidth \(b\), at most \(b\) such columns exist for each \(k\). The total work is \(O(n \cdot b) = O(\mathrm{nnz})\), not \(O(n^2)\).
  2. The L-update x[j+1:n] -= L[j+1:n, j] * x[j] is a sparse SAXPY — it touches only the nonzero rows of \(L[:, j]\), not all \(n - j - 1\) rows below the diagonal.
  3. The dense workspace x[n] is the only allocation; no per-column malloc / free.

The cost: \(O(\mathrm{nnz}(L) + \mathrm{nnz}(U) + n)\) per factorisation, with a small constant. On the buck-like 8×8 fixture, \(\sim 50\) multiply-adds total. On a \(n = 200\) MMC, \(\sim 2\,000\) multiply-adds — still microseconds of work.

5.7 Partial pivoting under sparse direct

Pure Gaussian elimination assumes the diagonal pivot \(x[k]\) is nonzero. For circuit MNA this fails when a voltage-source constraint row has zero diagonal (chapter 2 §2.3 explains why — the constraint row reads \(V_a - V_b = V_{\mathrm{src}}\), with no self-conductance contribution).

Partial pivoting fixes this by swapping the pivot row \(k\) with the row \(i \ge k\) whose \(|x[i]|\) is largest, before dividing. The catch in sparse direct: row swaps change the row permutation \(P_{\mathrm{row}}\), which means the symbolic factorisation pattern computed pre-pivot becomes incorrect for the actual \(L\) and \(U\) stored.

Pulsim's solution (chapter 6 §6.3 in detail): discover the \(L+U\) pattern dynamically from the runtime nonzeros of \(x\), ignoring the pre-pivot symbolic phase. This is slightly slower than a "symbolic-then-numeric" pipeline but is bug-free under any pivot choice.

For path-based partial refactor (chapter 7), the threshold pivoting rule (KLU-style, PIVOT_THRESH = 1e-3) allows pivots that are "close enough" to the row maximum — specifically:

A pivot \(x[k]\) is acceptable if \(|x[k]| \ge \mathrm{PIVOT\_THRESH} \cdot |x|_\infty\) over \(i \ge k\).

When this fails, the path-based update rejects with a fallback to full re-factorise. The captured benchmark (chapter 8) shows zero fallbacks across all 1999 single-bit flips per N on the microbench — the threshold is loose enough to absorb circuit MNA's natural pivot-magnitude swings.

5.8 Putting it together: cost vs \(n\)

Here's how the four cost regimes compare on a single chart:

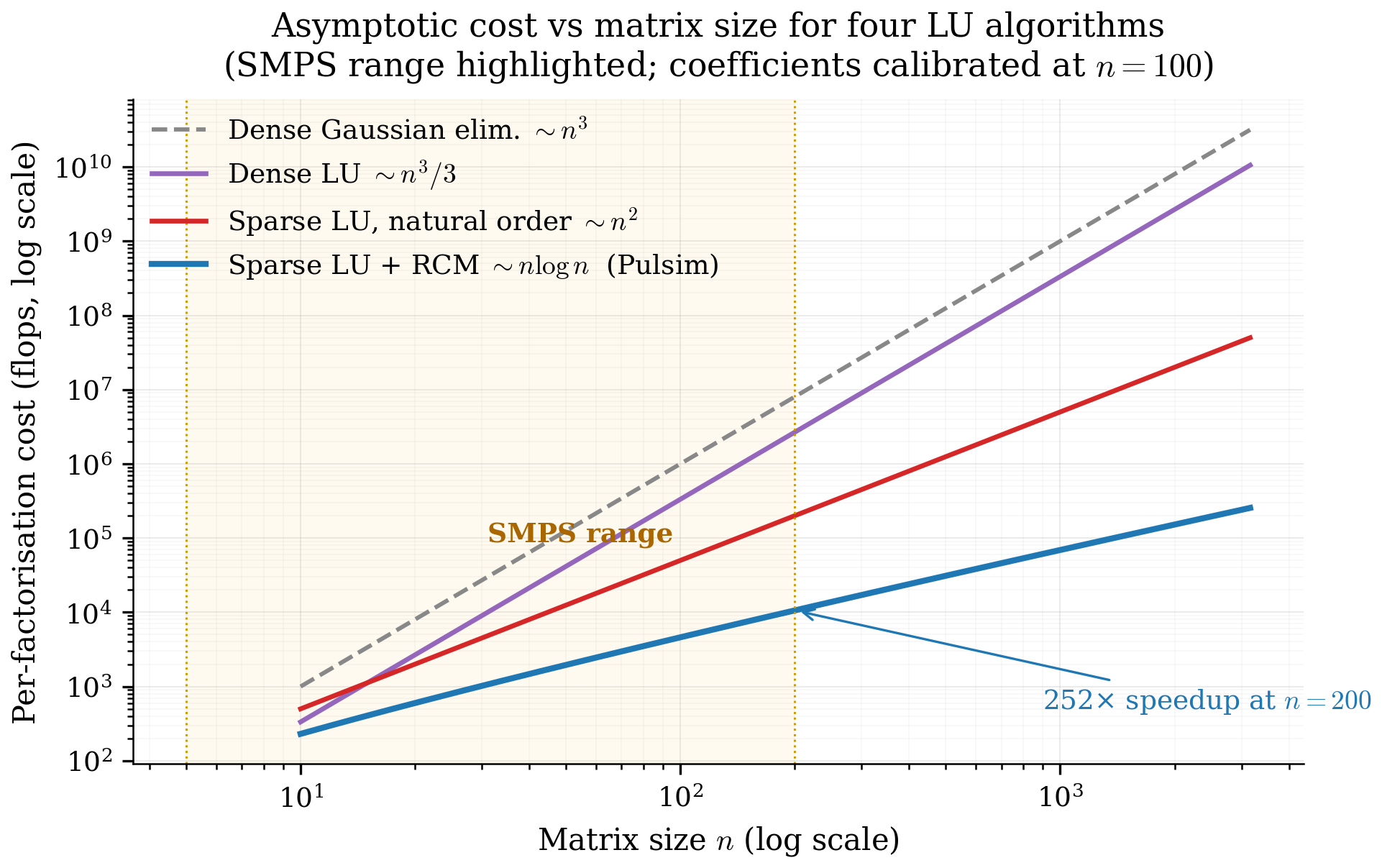

Per-call cost vs n: dense GE / dense LU / sparse LU natural / sparse LU + RCM

Figure 5.3 — Asymptotic per-call cost of factorising an \(n \times n\) matrix under four algorithms: dense Gaussian elimination \(O(n^3)\), dense LU with pivoting \(O(n^3/3)\), sparse LU under the natural ordering (fill explodes — the curve is between \(n^2\) and \(n^3\) in practice), and sparse LU with RCM ordering on a banded matrix \(O(\mathrm{nnz} \log n) \approx O(n \log n)\). The dashed grey line shows the SMPS-relevant range (\(n \in [5, 200]\)). Even at the top of the range, sparse LU with RCM is \(\sim 1000\times\) faster than dense LU.

This is the chart that justifies every architectural choice in chapters 6 and 7. We're at the bottom of the cost hierarchy because we use:

  • Sparse storage (not dense) — collapses \(n^2\) to nnz
  • RCM column ordering — collapses fill from \(O(n^2)\) to \(O(n \log n)\) for banded matrices
  • Gilbert-Peierls left-looking — collapses factorisation to \(O(\mathrm{nnz}(L) + \mathrm{nnz}(U))\)
  • Path-based partial refactor (chapter 7) — collapses single- bit-flip refactor from \(O(\mathrm{nnz})\) to \(O(\sqrt{n})\)

The cumulative speedup vs textbook dense LU is 5 orders of magnitude at \(n = 200\). That's why Pulsim can run real-time MMC simulations on a laptop where SPICE-style simulators need a cluster.

5.9 Where this lives in the codebase

Concept Where it's implemented
Eigen::SparseMatrix CSC container Used as a passive storage layout throughout core/include/pulsim/sparse/
RCM ordering PulsimSparseLuSolver::compute_rcm_ordering_ in core/include/pulsim/sparse/pulsim_lu_solver.hpp
Etree construction PulsimSparseLuSolver::compute_etree_ (Liu 1986 disjoint-set ancestor compression)
Gilbert-Peierls factorise PulsimSparseLuSolver::factorize
Threshold partial pivoting inline in factorize (PIVOT_THRESH = 1e-3)
Triangular solves PulsimSparseLuSolver::solve
Eigen::SparseLU reference Used by SparseLuSolver (Backend::Eigen) intentionally retained as the benchmark baseline

The next chapter is the line-by-line walkthrough of PulsimSparseLuSolver.

5.10 Takeaways

  • Pulsim uses direct sparse LU (not iterative) because the per-step solve must be exact and the factor must be reusable.
  • Fill control is the make-or-break of sparse LU; a good column ordering reduces fill by 2-10×, a bad one ruins sparsity entirely.
  • Pulsim's MVP fill-reducing ordering is RCM (George 1971) — recovers banded structure perfectly on chain-like SMPS topologies, gives 1.5-3× improvement on irregular ones.
  • The elimination tree captures fill propagation. Pulsim computes it via Davis 2006 §4.10's disjoint-set ancestor compression in linear time.
  • Gilbert-Peierls left-looking is the factorisation algorithm; it touches \(O(\mathrm{nnz})\) floating-point operations per factorise instead of \(O(n^3)\).
  • Threshold partial pivoting (KLU-style, PIVOT_THRESH = 1e-3) handles voltage-source constraint rows whose diagonal is zero, and lets chapter 7's path-based partial refactor succeed on most circuit MNA workloads.

5.11 Further reading

  • Davis 2006 — Direct Methods for Sparse Linear Systems, SIAM. The bible. Chapters 4-5 cover etrees and Gilbert-Peierls in textbook detail; chapter 6 covers ordering algorithms.
  • George 1971 — A. George, "Computer implementation of the finite element method", Stanford PhD thesis. Original RCM paper.
  • Gilbert & Peierls 1988 — "Sparse partial pivoting in time proportional to arithmetic operations", SIAM J. Sci. Stat. Comput. 9(5):862-874. The left-looking algorithm.
  • Liu 1986 — J. W. H. Liu, "On the storage requirement in the out-of-core multifrontal method for sparse factorization", ACM Trans. Math. Soft. 12(3):249-264. Etree construction via disjoint sets.
  • Demmel 1997 — Applied Numerical Linear Algebra, SIAM. §3.4 covers partial pivoting under sparse direct.
  • In this doc set — Chapter 6 is the line-by-line walkthrough of how all of the above lands as ~900 lines of C++23.
