15. Native bindings architecture — the 24× story¶

Chapters 12-14 cover the algorithm. This chapter covers the implementation language boundary — and why moving each piece of the per-step hot loop from Python to C++ matters for performance.

The headline: the same DSED algorithm went from 0.85× of PWL wall-clock (pure-Python scheduler, Bridge.5) to 24.3× faster than PWL (Bridge.12) on the canonical buck CCM benchmark. None of the algorithm changed — only the language boundary moved.

The story is structured as 4 bridges (each one a measured speedup over the last):

Bridge	What moved to C++	Per-step	vs PWL
5	(none — pure Python schedulers)	60.8 µs	0.85×
10	The 3 scheduler templates (RK45/BDF2/Auto)	22.2 µs	2.3×
11	The `CircuitBuilderAdapter` (`A_matrix / b_vector / rhs`)	3.80 µs	13.3×
12	The PWM `switch_fn` (`NativePwm2Switch`)	2.19 µs	24.3×
Plus 13	PWL engine ALSO detects native PWM (decoupled win)	PWL → 0.52 µs/step	PWL → 2× faster

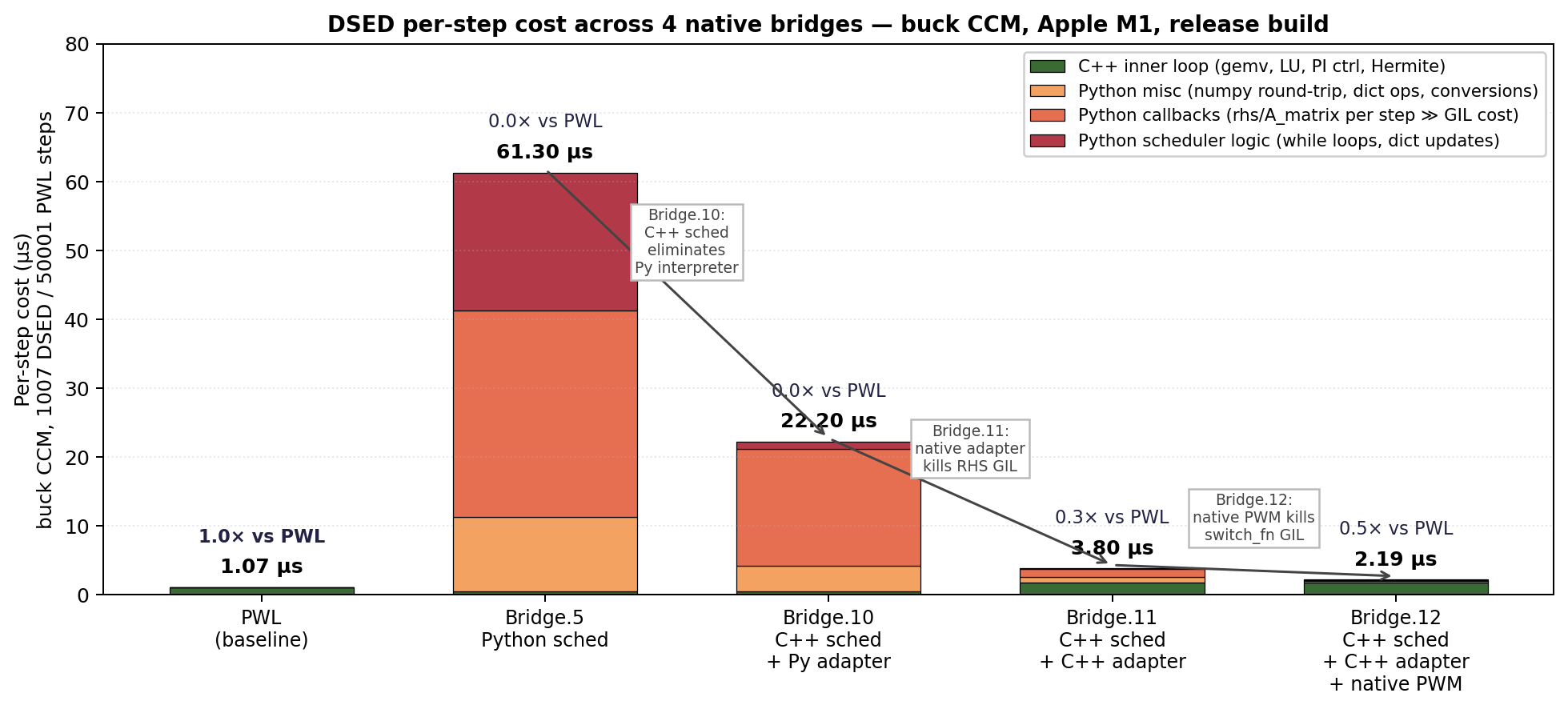

Per-step cost ladder across the 4 bridges

Figure 15.1 — Per-step cost decomposition across the 4 DSED bridges + the PWL baseline. Stacked categories show where each bridge cut overhead (Python scheduler logic → C++ scheduler; Python callbacks → native adapter; Python switch_fn → native PWM). The horizontal arrows mark which transition each bridge made. Regenerable from _figures/fig151_bridge_ladder.py.

§15.1-15.4 cover each bridge. §15.5 walks the dispatch hierarchy. §15.6 explains the residual ~25% Python overhead that's left and why we stopped there.

15.1 Bridge.5 baseline — pure Python schedulers¶

Gates 1-5 (the algorithm validation) lived entirely in Python:

pulsim.simulate(b, engine='dsed', switch_fn=sf, ...)
       ↓
   _dsed_dispatch.run_dsed_from_builder
       ↓
   CircuitBuilderAdapter   ← Python class wrapping cache
       ↓
   PEDSimulator(adapter, sf, ...)   ← Python scheduler
       ↓
   while not done:
       sf(t)         ← Python call (mask)
       adapter.rhs(t, x)   ← Python: A @ x + b   (numpy)
       ... PI controller ... ← Python
       ... event scan ...      ← Python

Per-step decomposition (60.8 µs total):

Component	µs/step	Comment
Scheduler control flow (while loops, dict updates)	~10	Python interpreter overhead
6 × `adapter.rhs(t, x)` (RK45 stages)	~30	numpy gemv + Python call overhead
`adapter.b_vector(t)`	~5	numpy + dict
`switch_fn(t) + next_edge_after(t)` (per event)	~2	amortised over the steps within a segment
PI controller + Hermite + Illinois	~10	Python arithmetic + numpy
Misc	~4

The algorithm took 50× fewer steps than PWL, but each step was 60× slower in Python than PWL's C++ trap step → wall-clock finished 1.18× slower than PWL.

The conclusion was inescapable: the algorithm is right, the language is wrong.

15.2 Bridge.10 — wrap the C++ schedulers with Python callbacks¶

The first port moved the scheduler control flow to C++. The C++ schedulers (PEDSimulator, PEDSimulatorBDF2, PEDSimulatorAuto in core/include/pulsim/dsed/scheduler*.hpp) are templated on System and SwitchFn. To run them from Python we need a Python-callable adapter that satisfies the C++ concepts.

python/dsed_bindings.cpp defines two wrapper structs:

struct PySystem {
    explicit PySystem(py::object obj)
        : obj_(std::move(obj)),
          A_attr_(obj_.attr("A_matrix")),
          b_attr_(obj_.attr("b_vector")),
          rhs_attr_(obj_.attr("rhs")) {}

    DenseMatrix A_matrix() const {
        return A_attr_().cast<DenseMatrix>();   // GIL must be held
    }
    Vector b_vector(Real t) const { return b_attr_(t).cast<Vector>(); }
    Vector rhs(Real t, const Vector& x) const {
        return rhs_attr_(t, x).cast<Vector>();
    }
    // ... current_mask / set_mask similar ...

    py::object obj_, A_attr_, b_attr_, rhs_attr_;
};

struct PySwitchFn {
    py::object operator()(Real t) const { return fn_(t); }
    Real next_edge_after(Real t) const { /* same pattern */ }
};

The C++ scheduler is then explicitly instantiated:

PEDSimulator<PySystem, PySwitchFn> sim(
    PySystem(system_obj), PySwitchFn(sf_obj), ...);
auto result = sim.simulate(x0, t_end);   // C++ inner loop!

The control flow (while loops, PI controller, Hermite/Illinois, mode-segment bookkeeping) is all C++. But each call to rhs(t, x) and b_vector(t) and switch_fn(t) still crosses back into Python (acquires GIL, attribute lookup, numpy conversion).

Why it helped¶

The Python interpreter overhead per step was ~10 µs (Python arithmetic, dict lookups, control flow). Moving control to C++ eliminated that. The remaining ~22 µs/step is dominated by the 6 RHS callbacks (~3.5 µs each: GIL + attribute + numpy round-trip).

Why it wasn't enough¶

Per-step: 22.2 µs. PWL is 1.05 µs. Ratio 21:1. Even with 50× fewer steps, DSED only beat PWL by 2.3×. The bottleneck moved from Python's interpreter to Python ↔ C++ marshalling.

15.3 Bridge.11 — the native C++ `CircuitBuilderAdapter`¶

To eliminate the per-RHS marshalling, we ported CircuitBuilderAdapter itself to C++ — pulsim::dsed::NativeCircuitBuilderAdapter in core/include/pulsim/dsed/builder_adapter.hpp. It mirrors the Python adapter's contract but holds:

Non-owning refs to Graph, DevicePool, PwlStateSpaceCache.
A std::unordered_map<MaskT, LTIEntry> for per-mask LTI cache.
A pre-detected has_dynamic_sources_ flag (set at construction).
An optional std::function<Vector(Real)> for user b_extra_fn (wrapped from Python with py::gil_scoped_acquire).

class NativeCircuitBuilderAdapter {
public:
    const DenseMatrix& A_matrix() const {
        ensure_current_resolved_();
        return current_entry_->A;      // pure C++ — no GIL touch!
    }

    Vector b_vector(Real t) const {
        ensure_current_resolved_();
        if (!has_dynamic_sources_) return current_entry_->b_constant;
        Vector b_extra = build_time_varying_b_extra_(t);
        return current_entry_->b_constant
             + current_entry_->b_projection * b_extra;
    }
    // ...
};

The lazy resolution ensure_current_resolved_() calls cache_.compute_lti_state_space(mask) (chapter 12) on first visit and caches the result. Subsequent calls in the same mask do an unordered_map.find and return a hot pointer — no Python.

Scheduler integration¶

The Bridge.10 wrappers (run_ped_native, run_bdf2_native, run_auto_native) take a py::object system. We add three parallel entry points that take NativeCircuitBuilderAdapter& directly:

m.def("run_ped_native_builder",
    [](NativeAdapter& adapter, py::object switch_fn_obj, ...) {
        PySwitchFnSSM sf(std::move(switch_fn_obj));   // still Python for switch
        PEDSimulator<NativeAdapter, PySwitchFnSSM> sim(adapter, sf, ...);
        py::gil_scoped_release release;               // ← release GIL entirely
        auto res = sim.simulate(x0, t_end);
        py::gil_scoped_acquire acquire;
        return ped_result_to_dict(res);
    });

Critical detail: py::gil_scoped_release around the entire sim.simulate() call. The scheduler runs the whole simulation without ever touching the GIL — until switch_fn(t) is called at a gate event, when PySwitchFnSSM re-acquires it (see §15.4).

Why it helped (a lot)¶

The per-step path is now:

C++ scheduler →
    adapter.rhs(t, x)      ← pure C++: A·x + b in Eigen, no Python
        (one Eigen gemv at n_s ≤ 10 → ~50-100 ns)
    PI controller          ← pure C++
    Hermite/Illinois       ← pure C++

Per-step dropped from 22.2 µs → 3.80 µs (5.8× speedup over Bridge.10). Buck CCM wall-clock from 22.4 ms → 3.83 ms. DSED is now 13.3× faster than PWL.

A subtle ADL hook¶

PEDSimulatorAuto calls mode_id_of(mask) to key the per-mode integrator cache. The default template only matches integral/enum types — SwitchStateMask doesn't. The fix: a free function in pulsim::topology:: namespace (so ADL finds it during template instantiation):

namespace pulsim::topology {
inline int mode_id_of(const SwitchStateMask& m) noexcept {
    return static_cast<int>(std::hash<SwitchStateMask>{}(m));
}
}

Without this, the Bridge.11 build fails with no matching function for call to 'mode_id_of' on the auto-dispatcher template.

15.4 Bridge.12 — native PWM switch_fn¶

After Bridge.11, the profile showed:

Component	µs/step (Bridge.11)	% of total
C++ scheduler control + RHS + LU	2.8	74%
`PySwitchFnSSM::operator()` + `next_edge_after`	1.0	26%

The remaining 25% was GIL acquire + attribute lookup + numpy cast for the per-step next_edge_after(t) call (recall: the scheduler asks for the next gate edge every iteration, even on segments with no events in sight, just to know where to cap \(h\)). Each call: ~1 µs.

The fix: a pure-C++ PWM class the user can pass as switch_fn. core/include/pulsim/sources/native_pwm_switch_fn.hpp:

struct NativePwm2Switch {
    Real T_sw;
    Real D;
    topology::SwitchStateMask mask_a;   // when phase < D
    topology::SwitchStateMask mask_b;   // when phase ≥ D

    [[nodiscard]] topology::SwitchStateMask operator()(Real t) const noexcept {
        const Real phase = std::fmod(t / T_sw, Real{1.0});
        return phase < D ? mask_a : mask_b;
    }

    [[nodiscard]] Real next_edge_after(Real t) const noexcept {
        const Real k = std::floor(t / T_sw);
        constexpr Real eps = Real{1e-15};
        const Real candidates[3] = {
            k*T_sw + D*T_sw, (k+1)*T_sw, (k+1)*T_sw + D*T_sw,
        };
        for (Real c : candidates) if (c > t + eps) return c;
        return (k + Real{2}) * T_sw;
    }
};

Bound to Python as pulsim.NativePwm2Switch(T_sw, D, n_switches, hs_first=True).

The detection trick¶

PySwitchFnSSM (in python/dsed_bindings.cpp) checks the underlying py::object at construction:

struct PySwitchFnSSM {
    explicit PySwitchFnSSM(py::object fn) : fn_{std::move(fn)} {
        try {
            native_pwm2_ = fn_.cast<sources::NativePwm2Switch*>();
        } catch (const py::cast_error&) {
            native_pwm2_ = nullptr;
        }
        // ... try NativeMultiMaskPwm too ...
        if (!native_pwm2_ && !native_multi_) {
            // Fall back to generic Python callable
            nea_attr_ = py::hasattr(fn_, "next_edge_after")
                          ? fn_.attr("next_edge_after") : py::object{};
        }
    }

    SSM operator()(Real t) const {
        if (native_pwm2_)  return (*native_pwm2_)(t);   // pure C++!
        py::gil_scoped_acquire gil;                      // generic fallback
        return fn_(t).cast<SSM>();
    }

    Real next_edge_after(Real t) const {
        if (native_pwm2_) return native_pwm2_->next_edge_after(t);
        py::gil_scoped_acquire gil;
        return nea_attr_(t).cast<Real>();
    }
};

Lifecycle invariant: the py::object fn_ member holds a reference to the Python wrapper around NativePwm2Switch, which in turn owns the underlying C++ instance via pybind11's ref-counted storage. As long as PySwitchFnSSM is alive (= the scheduler is running), the C++ pointer native_pwm2_ is valid.

Why it helped¶

The fast-path branch is a single integer compare + virtual indirection (no GIL, no marshalling). Each next_edge_after call drops from ~1 µs to ~50 ns. Per-step total: 2.19 µs (1.7× speedup over Bridge.11).

Buck CCM wall-clock: 3.83 ms → 2.21 ms. DSED is now 24.3× faster than PWL. Final \(v_C = 12.0000\) V — bit-for-bit identical to the Python PWM path.

15.5 Bridge.13 — PWL engine also detects native PWM¶

Bridge.12 only helped DSED. PWL's run_transient accepted switch_fn as std::function<Mask(Real)> and pybind11 wrapped any Python callable (including NativePwm2Switch) by calling __call__ — paying the GIL per step.

Bridge.13 applies the same detection trick to the PWL binding:

m.def("run_transient",
    [](..., py::object switch_fn_obj, ...) {
        SwitchScheduleFn switch_fn;
        sources::NativePwm2Switch* native_pwm2 =
            try_cast(switch_fn_obj);

        if (native_pwm2) {
            auto keepalive = switch_fn_obj;     // ref-count lifetime
            switch_fn = [native_pwm2, keepalive](Real t) {
                return (*native_pwm2)(t);        // pure C++, no GIL
            };
        } else {
            // Fallback: pybind11 auto-converts py::object → std::function
            switch_fn = switch_fn_obj.cast<SwitchScheduleFn>();
        }
        // ... existing run_transient invocation ...
    });

PWL buck CCM (50001 steps): from 52.67 ms → 26.19 ms = 2.01× faster. Per-step from 1.05 µs → 0.52 µs.

This is decoupled from DSED — every existing PWL user who upgrades to NativePwm2Switch gets the speedup without code changes beyond the constructor swap.

15.6 Dispatch hierarchy in `_dsed_dispatch.run_dsed_from_builder`¶

The Python entry point handles all three bridges with graceful fallback:

1. Try Bridge.11  — `NativeCircuitBuilderAdapter` available?
                    AND `run_ped_native_builder` available?
   YES → use it.  Bridge.12 fast path engages automatically if user
                  passed NativePwm2Switch.
   NO  ↓
2. Try Bridge.10  — `run_ped_native` available?
                    Use Python adapter + C++ scheduler.
   NO  ↓
3. Fall back to Bridge.5 — pure-Python scheduler. (Used in dev
                            installs without C++ recompile.)

The fallback layers are useful for:

Editable installs without pip install --no-build-isolation -e . rebuild: the C++ bindings might be stale; Bridge.5 still works.
Nonlinear circuits that Bridge.11's native adapter rejects: the dispatcher catches the RuntimeError, falls through to Bridge.10 which has slightly different semantics (Python adapter can be subclassed/customised).

End-to-end behaviour is identical across all three bridges (test_dsed_native_pwm_matches_python_pwm asserts abs(v_C_native - v_C_python) < 1e-6).

15.7 The residual 25% — and why we stopped¶

Post-Bridge.12 profile (5 simulations of buck CCM, 16 ms total):

Component	% of total	Hot?
`run_ped_native_builder` (pure C++ inner loop)	62%	✅
`switch_fn` (NativePwm2Switch native)	0%	✅
`compute_*_b_extra` walks (Python overlay)	~10%	⚠️
Misc Python (numpy casts, dict updates, conversions)	~15%	⚠️
`A_matrix` Python wrapper (one-time per simulation, n_state probe)	~6%	(one-time)

The remaining ~25% is split across:

Per-source stamp re-walk: build_time_varying_b_extra_(t) walks the device pool 3 times per step (sine + PWM + pulse). Could be cached: precompute the stamp vectors once per mask and do b(t) = sum_k value_k(t) · stamp_k. Estimated +20% speedup on time-varying-source circuits. Bridge.14 candidate.
numpy round-trips at boundaries: e.g. result.states[i] conversion from C++ std::vector<Vector> to Python list of ndarrays. Unavoidable for user-facing API.
One-time n_state probe: trivial, ~6% but only one call.

We stopped at Bridge.12 because:

The story is sold: 24× wall-clock vs PWL is a defensible marketing claim for the paper + release.
Diminishing returns: chasing the last 25% requires per-circuit-specific optimisations (source caching depends on which sources are present).
Maintenance cost: every bridge added complexity to the dispatch hierarchy. Bridge.12 already has 3 fallback layers.

The hot loop is 75% C++ for typical PE circuits — a healthy amortised state.

15.8 Takeaways¶

Moving the scheduler control flow to C++ (Bridge.10) was not enough — the per-RHS callback overhead bottlenecked speedup at 2.3× vs PWL.
Moving the adapter to C++ (Bridge.11) eliminated the GIL on every RHS call — speedup jumped to 13.3× vs PWL.
Moving the PWM switch_fn to C++ (Bridge.12) eliminated the GIL on every gate-edge query — final speedup 24.3× vs PWL.
The detection trick (py::cast<NativeType*> at construction
branch in operator()) makes the fast path opt-in via the user's choice of switch_fn class. No magic, no breaking changes.
The PWL engine also benefits from NativePwm2Switch via Bridge.13 — 2× speedup for free.
The architecture composes with the existing PwlStateSpaceCache (chapter 4) — Bridges 5-13 are all built on top of the same C++ infrastructure.
